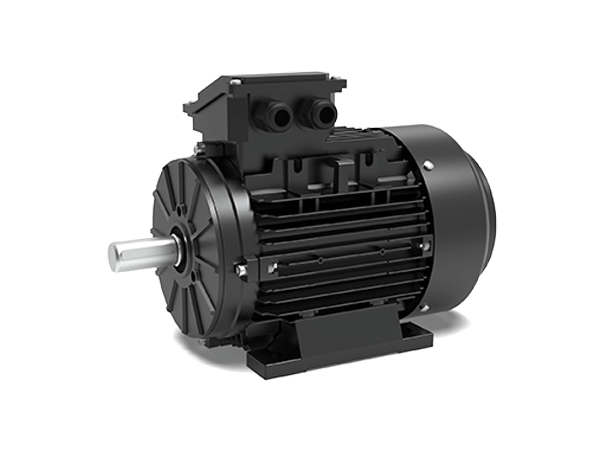

TAP Series MEPS2(Aus)Premium Efficiency Motors

Models
Overview
Features
Downloads

models

Model	Output (kW)	Current (A)	Speed (r/min)	Eff. 100%	Eff. 75%	Eff. 50%	Power factor (Φ)	Tn (N.m)	Operation
TAP 801-2	0.75	1.64	2880	81.4	81	77.9	0.81	2.49	Specification Specification
TAP 802-2	1.1	2.33	2890	83	82.8	80.2	0.82	3.63	Specification Specification
TAP 90S-2	1.5	3.11	2890	84.8	84.4	82	0.82	4.96	Specification Specification
TAP 90L1-2	2.2	4.38	2900	86.4	86.6	85.2	0.84	7.24	Specification Specification
TAP 100L1-2	3	5.63	2910	87.4	87.8	86.6	0.88	9.85	Specification Specification
TAP 112M1-2	4	7.20	2920	88.1	88.2	87	0.91	13.08	Specification Specification
TAP 132S1-2	5.5	9.86	2920	89.5	89.7	88.5	0.9	17.99	Specification Specification
TAP 132S2-2	7.5	13.20	2920	90.1	90.9	90.7	0.91	24.53	Specification Specification
TAP 160M1-2	11	19.72	2950	91.5	91.3	89.9	0.88	35.61	Specification Specification
TAP 160M2-2	15	25.55	2950	92.1	91.7	90.1	0.92	48.56	Specification Specification
TAP 160L1-2	18.5	31.38	2950	92.5	92.9	91.9	0.92	59.89	Specification Specification
TAP 180M-2	22	37.56	2950	92.9	93.2	92.6	0.91	71.22	Specification Specification
TAP 200L1-2	30	51.40	2960	93.6	93.5	92.5	0.9	96.79	Specification Specification
TAP 200L2-2	37	63.40	2960	93.6	93.5	92.5	0.9	119.38	Specification Specification
TAP 712-4	0.37	1.02	1420	77.3	77.1	73.6	0.68	2.49	Specification Specification
TAP 801-4	0.55	1.38	1420	80.8	80.6	79.2	0.71	3.70	Specification Specification
TAP 802-4	0.75	1.89	1435	82.9	83.4	81.5	0.69	4.99	Specification Specification
TAP 100L1-4	2.2	4.45	1450	87.1	87.6	86.6	0.82	14.49	Specification Specification
TAP 112M1-4	4	7.93	1450	88.8	89	88.4	0.82	26.34	Specification Specification
TAP 132S-4	5.5	10.52	1460	89.8	90	89.6	0.84	35.98	Specification Specification
TAP 132M1-4	7.5	14.09	1460	90.4	90.9	90.3	0.85	49.06	Specification Specification
TAP 160M-4	11	20.84	1470	91.8	92.1	90.2	0.83	71.46	Specification Specification
TAP 160L1-4	15	27.57	1470	92.4	92.6	91.6	0.85	97.45	Specification Specification
TAP 180M-4	18.5	33.53	1470	92.6	92.8	92.1	0.86	120.19	Specification Specification
TAP 180L-4	22	39.62	1470	93.2	93.3	92.5	0.86	142.93	Specification Specification
TAP 200L-4	30	53.18	1470	93.6	93.7	92.9	0.87	194.90	Specification Specification
TAP 100L-6	1.5	3.55	945	82.4	82.9	81.7	0.74	15.16	Specification Specification
TAP 112M-6	2.2	5.31	960	84.2	84.4	83.1	0.71	21.89	Specification Specification
TAP 132S-6	3	6.82	965	85.8	86.2	85.3	0.74	29.69	Specification Specification
TAP 132M1-6	4	8.95	970	87.2	87.5	86.6	0.74	39.38	Specification Specification
TAP 132M2-6	5.5	12.50	970	88.2	88.5	87.3	0.72	54.15	Specification Specification
TAP 160M-6	7.5	15.95	970	89.3	89.7	88.7	0.76	73.84	Specification Specification
TAP 160L-6	11	22.47	975	90.6	91.1	90.2	0.78	107.74	Specification Specification
TAP 180L-6	15	30.50	980	91	90.8	89.6	0.78	146.17	Specification Specification
TAP 200L1-6	18.5	36.90	980	91.6	91.2	89.9	0.79	180.28	Specification Specification
TAP 200L2-6	22	43.64	980	92.1	91.9	90.8	0.79	214.39	Specification Specification
TAP 100L1-8	0.75	2.19	700	75	74.3	70.5	0.66	10.23	Specification Specification
TAP 100L2-8	1.1	3.01	705	77.7	78	76.2	0.68	14.90	Specification Specification
TAP 112M-8	1.5	3.88	715	79.7	78.9	76.9	0.7	20.03	Specification Specification
TAP 132S-8	2.2	5.87	720	81.9	82	80.2	0.66	29.18	Specification Specification
TAP 132M-8	3	7.74	725	83.5	82.5	80.7	0.67	39.52	Specification Specification
TAP 160M1-8	4	9.84	725	85	85.4	83.9	0.69	52.69	Specification Specification
TAP 160M2-8	5.5	13.30	725	86.5	86.6	85.4	0.69	72.45	Specification Specification
TAP 160L-8	7.5	17.61	725	87.8	88.1	86.8	0.7	98.79	Specification Specification
TAP 180L-8	11	25.60	735	88.6	88.9	87.4	0.7	142.93	Specification Specification
TAP 200L-8	15	31.80	735	89.6	89.6	88.5	0.76	194.90	Specification Specification
