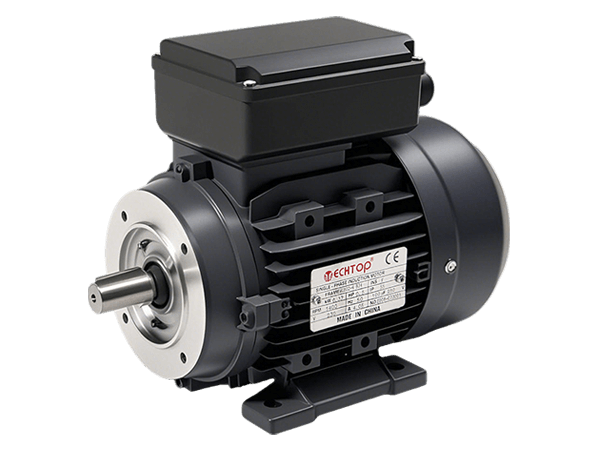

MC Series Single-Phase Capacitor Start Motors

MC Series Single-Phase Capacitor Start Motors

models

  • Search
Model Output
(kW)
Current
(A)
Speed
(r/min)
Eff. 100% Eff. 75% Eff. 50% Power factor
(Φ)
Tn
(N.m)
Operation
MC631-2 0.09 1.22 2650 44 0.73 0.32
MC632-2 0.12 1.36 2730 52 0.74 0.42
MC711-2 0.18 1.86 2750 60 0.7 0.63
MC712-2 0.25 2.44 2780 62 0.72 0.86
MC801-2 0.37 3.46 2800 62 0.75 1.26
MC802-2 0.55 4.78 2800 65 0.77 1.88
MC631-4 0.06 1.22 1400 39 0.55 0.41
MC632-4 0.09 1.80 1390 39.5 0.55 0.62
MC711-4 0.12 1.86 1360 50 0.56 0.84
MC712-4 0.18 2.46 1380 53 0.6 1.25
MC801-4 0.25 3.07 1390 58 0.61 1.72
MC802-4 0.37 4.19 1400 62 0.62 2.52
Overview

MC Series aluminum housing single-phase capacitor-start asynchronous motors, with latest design in entirety, are made of ed quality materials and conform to the IEC standard.

MC motors have good performance, safely and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time of light weight and simple construction. High starting torque, perfect starting performance, generally the multiple of the starting torque can up to 3.0 times.

These series motors are suitable for the occasion where big starting torque and small starting current, such as aircompressors, pumps, refrigerators, medical apparatus, and many other machines needing full-load start.

Features

Features

    • MC Series aluminum housing single-phase capacitor-start asynchronous motors, with latest design in entirety, are made of ed quality materials and conform to the IEC standard.
    • MC motors have good performance, safely and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time of light weight and simple construction. High starting torque, perfect starting performance, generally the multiple of the starting torque can up to 3.0 times.
    • Braking operations to increase the set-up precision.
    • These series motors are suitable for the occasion where big starting torque and small starting current, such as aircompressors, pumps, refrigerators, medical apparatus, and many other machines needing full-load start.

APPLICATIONS

    Content coming soon – stay tuned!
